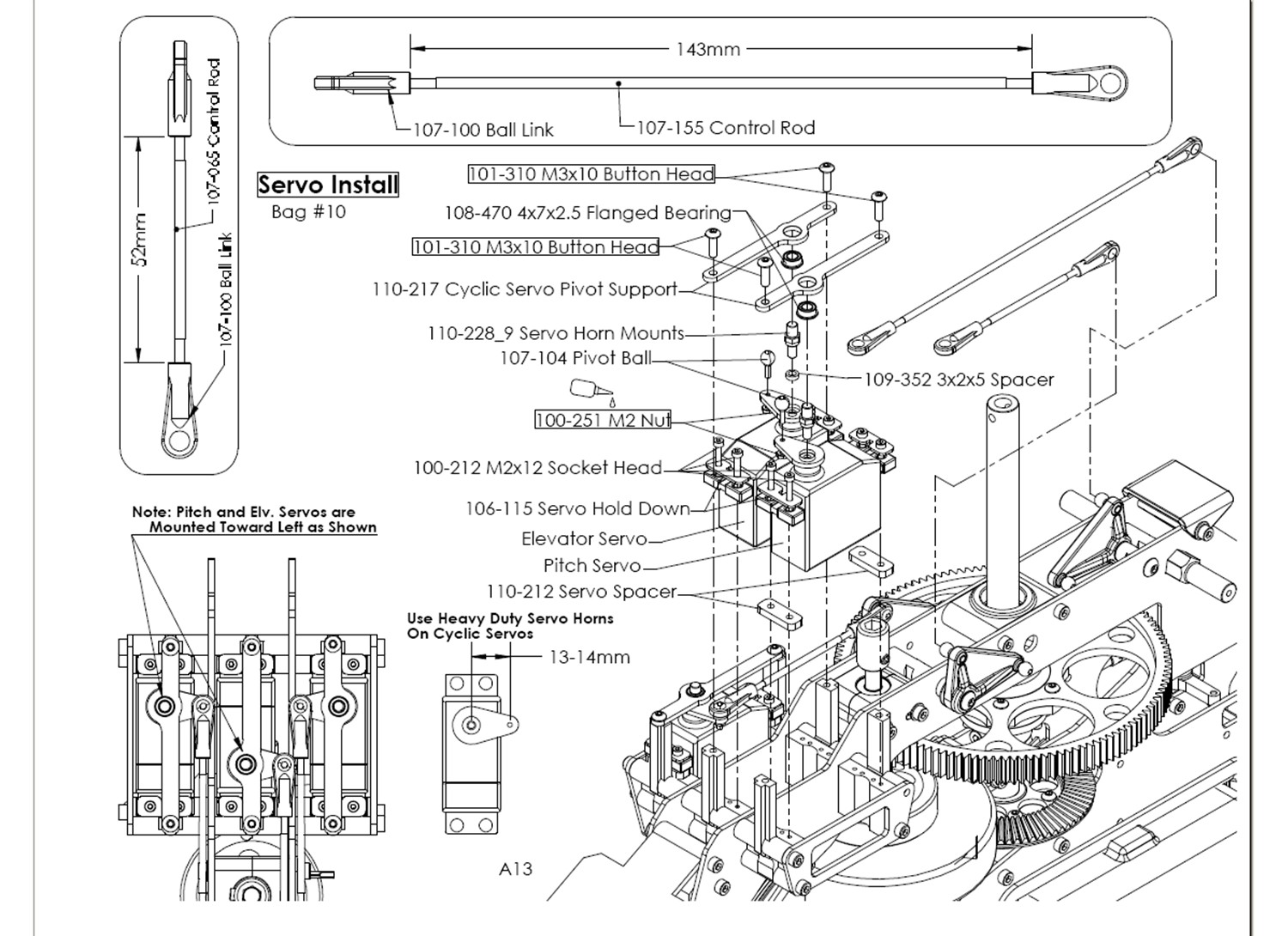

The setup goal here is to have the servo horns at 90 degrees to the frames using minimal subtrim at zero pitch. Use trial and error with Futaba 4 star horns to achieve this.

Adjust the links so that all the cyclic bellcranks are at 90 degrees.
