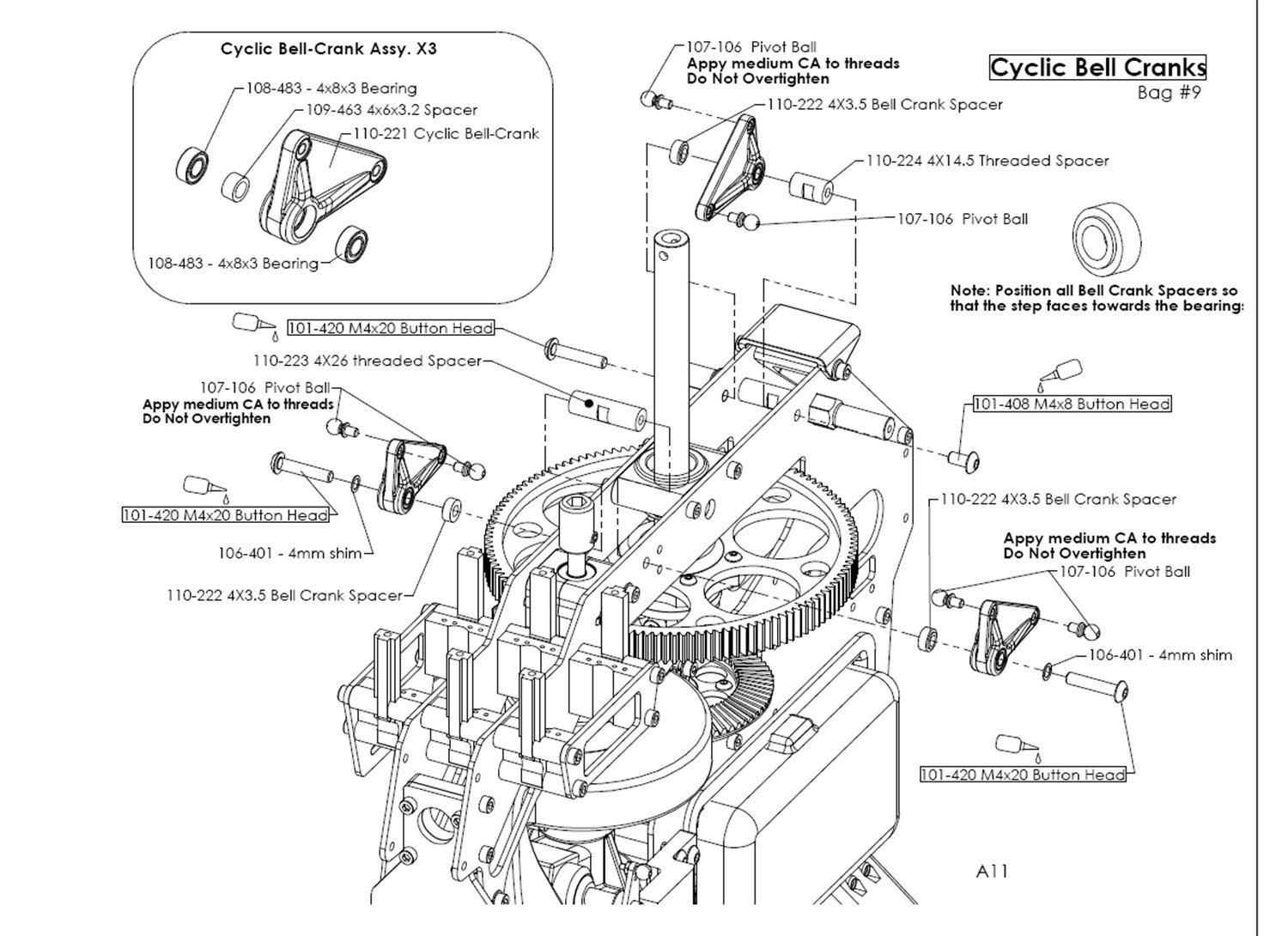

The setup goal for the bell cranks is to have the raised portions perfectly vertical and horizontal at zero degrees.

Double check that the raised portion of the bell crank spacers face outwards towards the bearing as noted in the directions.
