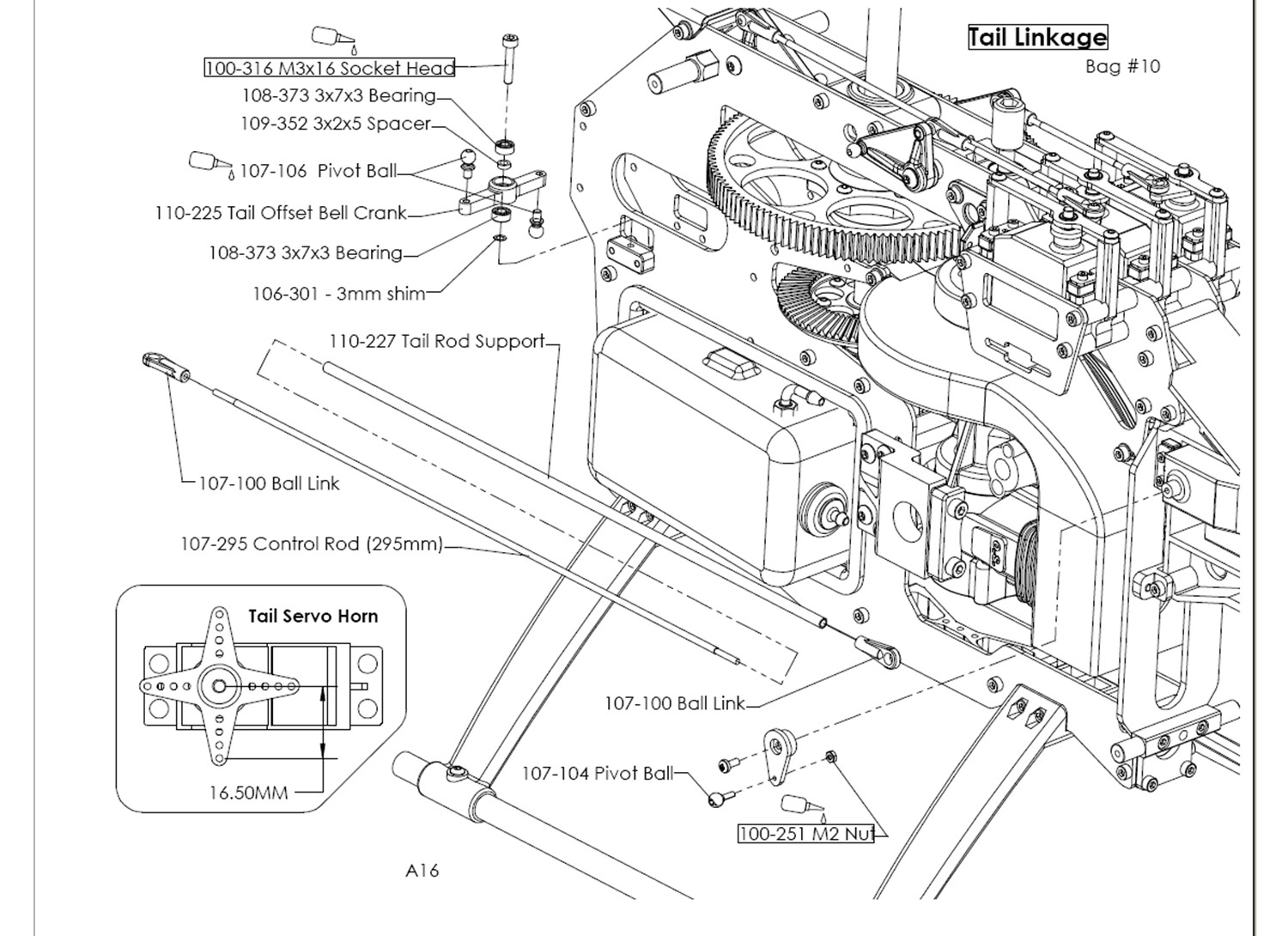

Do not use a wheel for the tail servo horn as the link will hit the side.
Verify the collar is up on the Tail Offset Bell Crank (110-225).
