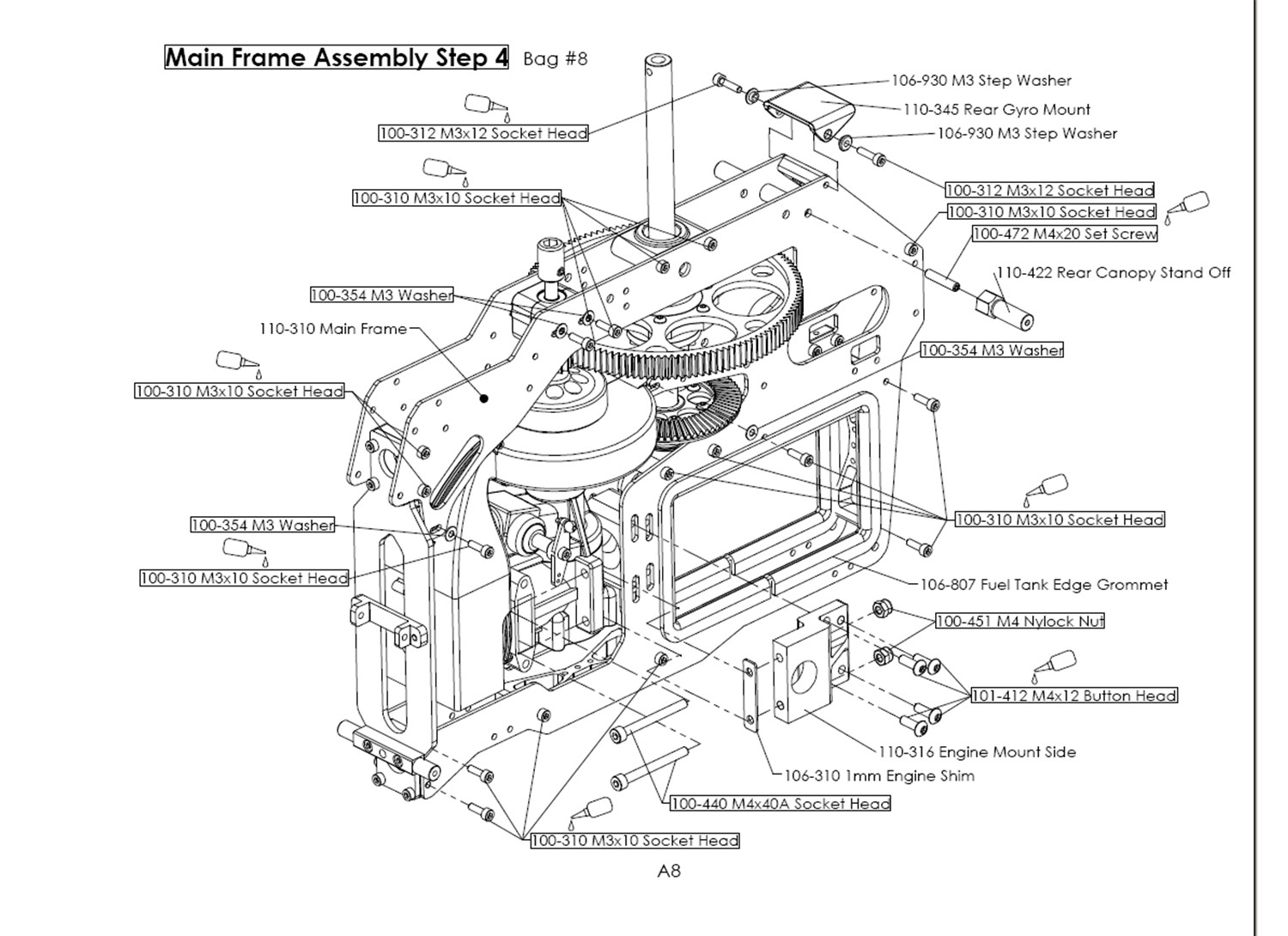

Check the clearance of the fan within the fan shroud (110-342/3).
If you will be using the MA wire clips for the gyro sensor, do not tighten the upper frame screws yet. Same for the lower frame screw if you want to mount a remote glow adapter.
